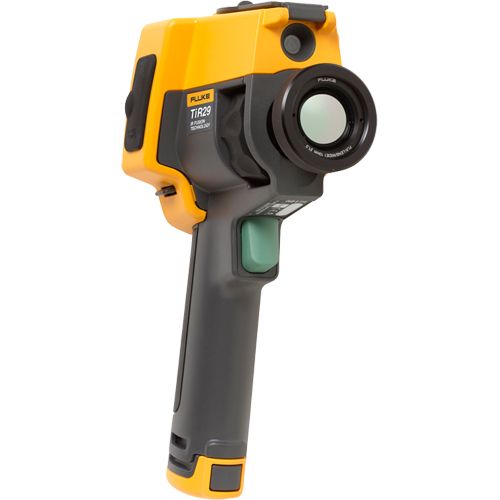

Fluke Ti29 60Hz Industrial-Commercial Thermal Imager

Superior image quality with One-handed, easy-to-use interface The Fluke Ti29 features industry-leading thermal sensitivity and spatial resolution combined with a high definition display, creates the sharpest images in the industry. With just a push of your thumb, go from one-handed manual smart focus to adding picture-in-picture and even add voice comments with the Fluke Ti-29 Industrial-Commercial Thermal Imager.
Fluke Ti29280x210 IR resolution, 58,800 IR pixels, 60Hz Industrial-Commercial Thermal Imager

Superior Image Quality and IR performance

  • 280x210 IR resolution

  • 43,200 total IR pixels

  • High resolution FPA uncooled Microbolometers

  • Largest in class 3.7" high definition display with 640 x 480 resolution

  • Industry leading spatial resolution delivering sharpest images

  • Industry-leading thermal sensitivity (NETD) to see even the smallest temperature differences down to 0.045°C

  • Expanded temperature measurement up to 600°C

  • Most affordable, field-installable, optional wide angle and telephoto lenses

Ease of use

  • Award-winning ergonomic design

  • Precision IR-Fusion with industry’s only on-camera visible and infrared image blending

  • One handed operation and smart focus system

  • SmartView analysis and reporting software (with free upgrades through life of product)

  • Removable 2 GB SD memory card for easy storage and transfer of thermal and visible images


  • Proven ruggedness with 2 m (6.5 ft.) drop test

  • Integrated lens cap, hand strap, and protected display

  • Ruggedized, replaceable, rechargeable Lithium-ion smart batteries for extended use situations

  • Two-year standard warranty

  • Extended service and warranty options with Fluke Instrument CarePlans.

Selected Features:

  • High temperature or dewpoint color alarms

  • Transmission correction

  • Quick access level/span adjustment

  • Thumbnail view memory

  • Multiple display options

  • Ultra-Contrast palette options

  • .IS2, .BMP, and .JPG File formats on imager

  • Easily-accessible Imager information

The greatest technological advancement in thermography may be how Fluke has made it so simple to capture images and analyze data right out of the box.
Superior image quality Industry-leading thermal sensitivity and spatial resolution combined with a high definition display, creates the sharp-est images in the industry.
One-handed, easy-to-use interface With just a push o
