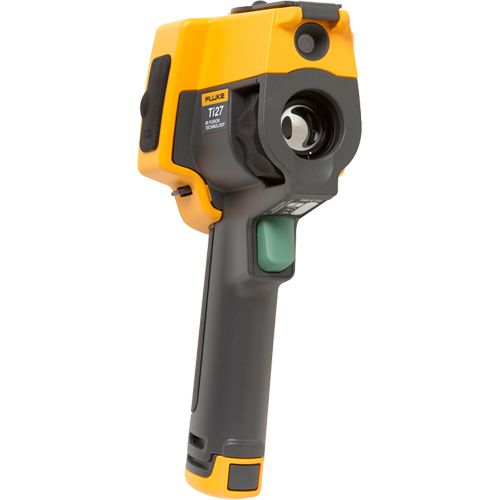

Fluke Ti27 60Hz Industrial-Commercial Thermal Imager

Superior image quality with One-handed, easy-to-use interface The Fluke TiR27 features industry-leading thermal sensitivity and spatial resolution combined with a high definition display, creates the sharpest images in the industry. With just a push of your thumb, go from one-handed manual smart focus to adding picture-in-picture and even add voice comments with the Fluke TiR-27 Industrial-Commercial Thermal Imager.



Superior Image Quality and IR performance

  • 240x180 IR resolution

  • 43,200 total IR pixels

  • High resolution FPA uncooled Microbolometers

  • Largest in class 3.7" high definition display with 640 x 480 resolution

  • Industry leading spatial resolution delivering sharpest images

  • Industry-leading thermal sensitivity (NETD) to see even the smallest temperature differences down to 0.045°C

  • Expanded temperature measurement up to 600°C

  • Most affordable, field-installable, optional wide angle and telephoto lenses


Ease of use

  • Award-winning ergonomic design

  • Precision IR-Fusion with industry’s only on-camera visible and infrared image blending

  • One handed operation and smart focus system

  • SmartView analysis and reporting software (with free upgrades through life of product)

  • Removable 2 GB SD memory card for easy storage and transfer of thermal and visible images


Ruggedness

  • Proven ruggedness with 2 m (6.5 ft.) drop test

  • Integrated lens cap, hand strap, and protected display

  • Ruggedized, replaceable, rechargeable Lithium-ion smart batteries for extended use situations

  • Two-year standard warranty

  • Extended service and warranty options with Fluke Instrument CarePlans.


Selected Features:

  • High temperature or dewpoint color alarms

  • Transmission correction

  • Quick access level/span adjustment

  • Thumbnail view memory

  • Multiple display options

  • Ultra-Contrast palette options

  • .IS2, .BMP, and .JPG File formats on imager

  • Easily-accessible Imager information









The greatest technological advancement in thermography may be how Fluke has made it so simple to capture images and analyze data with the Fluke Ti27 240x180 IR resolution, 43,200 IR pixels, 60Hz Industrial-Commercial Thermal Imager right out of the box.
Superior image quality The Fluke Ti 27 features industry-leading thermal sensitivity and spatial resolution combined with a high definition display, creates the sharpest images in the industry.
One-handed, easy-to-use interface With just a push of
